Ultrasound: Binding of Solar Exchangers

Goals:

Design of a station to seize by ultrasound and on the fly copper sheets on copper tubes used in air-water type solar exchangers.

Results:

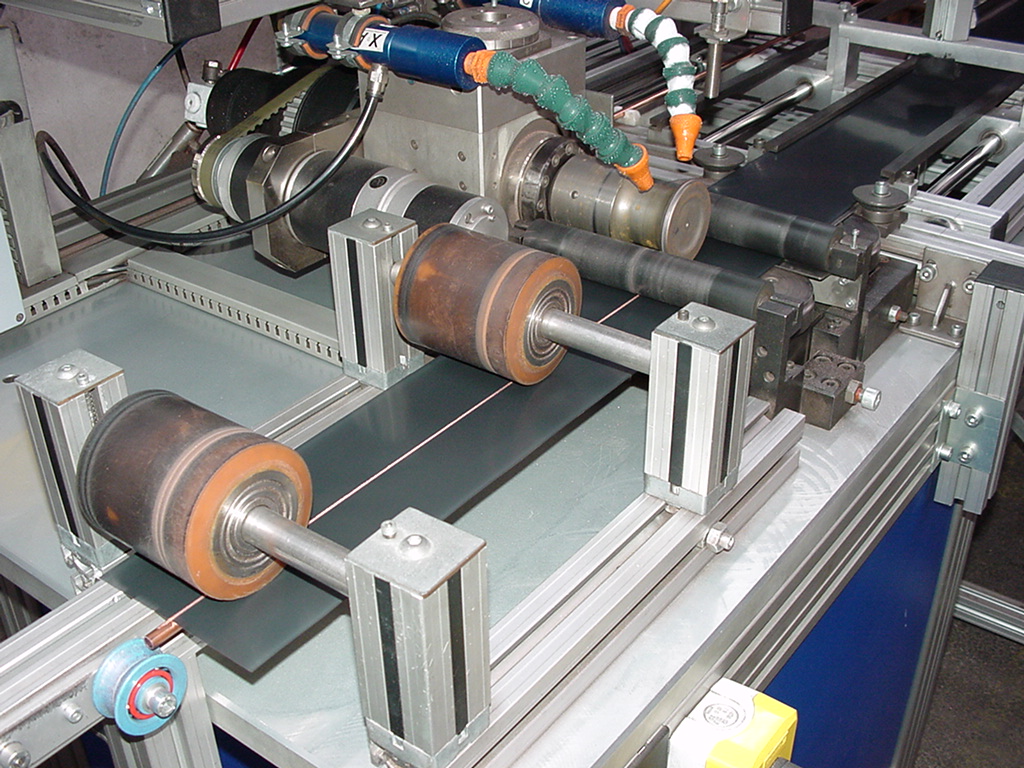

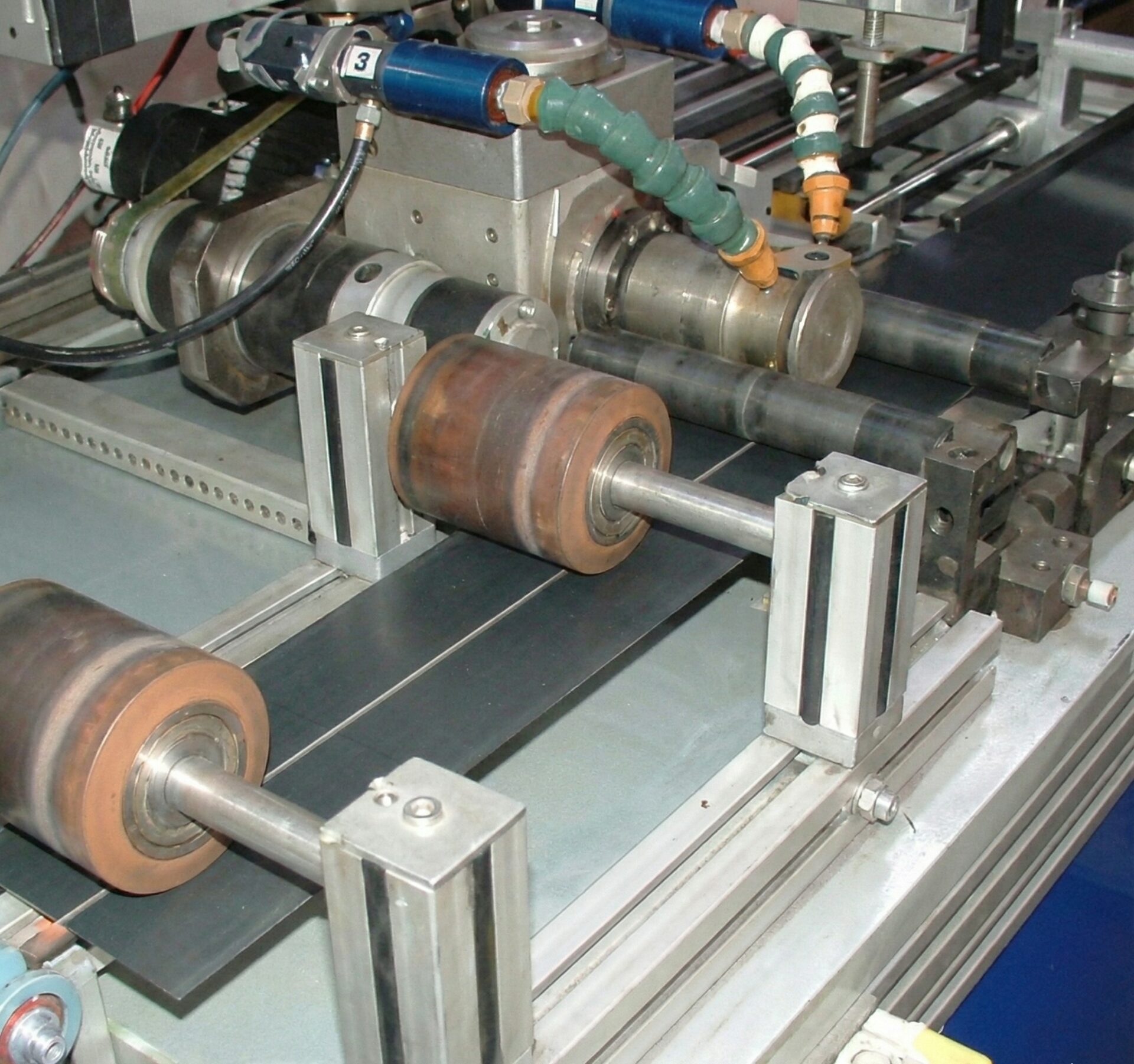

Realization of an autonomous station equipped with a rotating sonotrode which provides ultrasonic welding on the fly at a speed of 10 meters per minute.

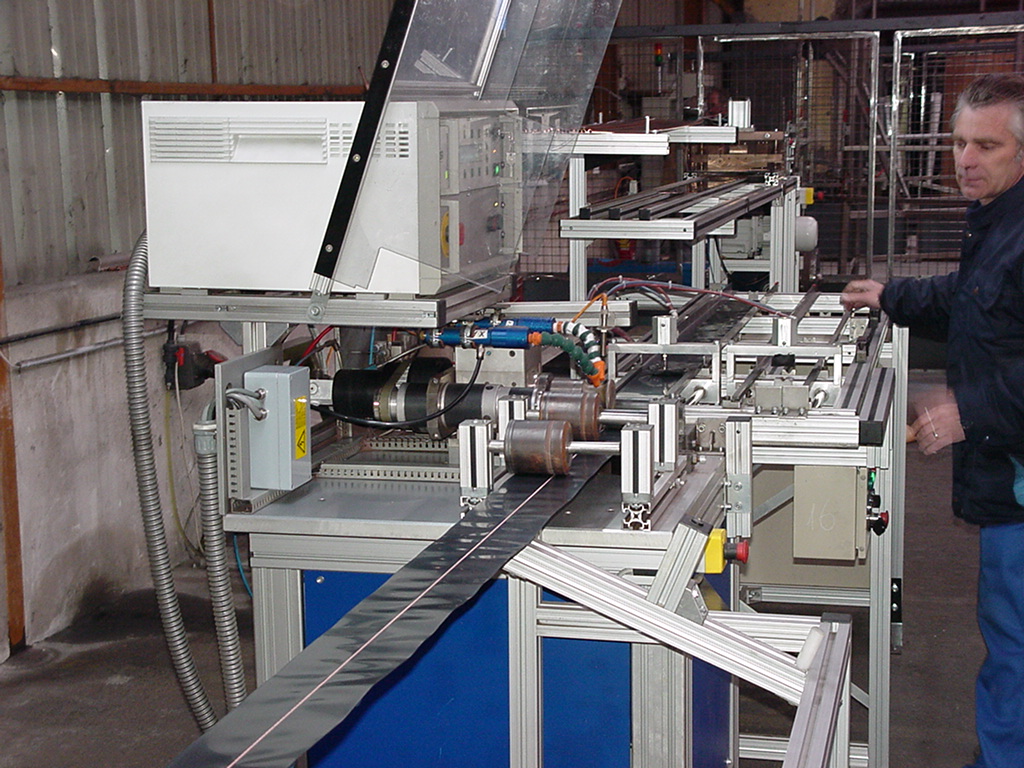

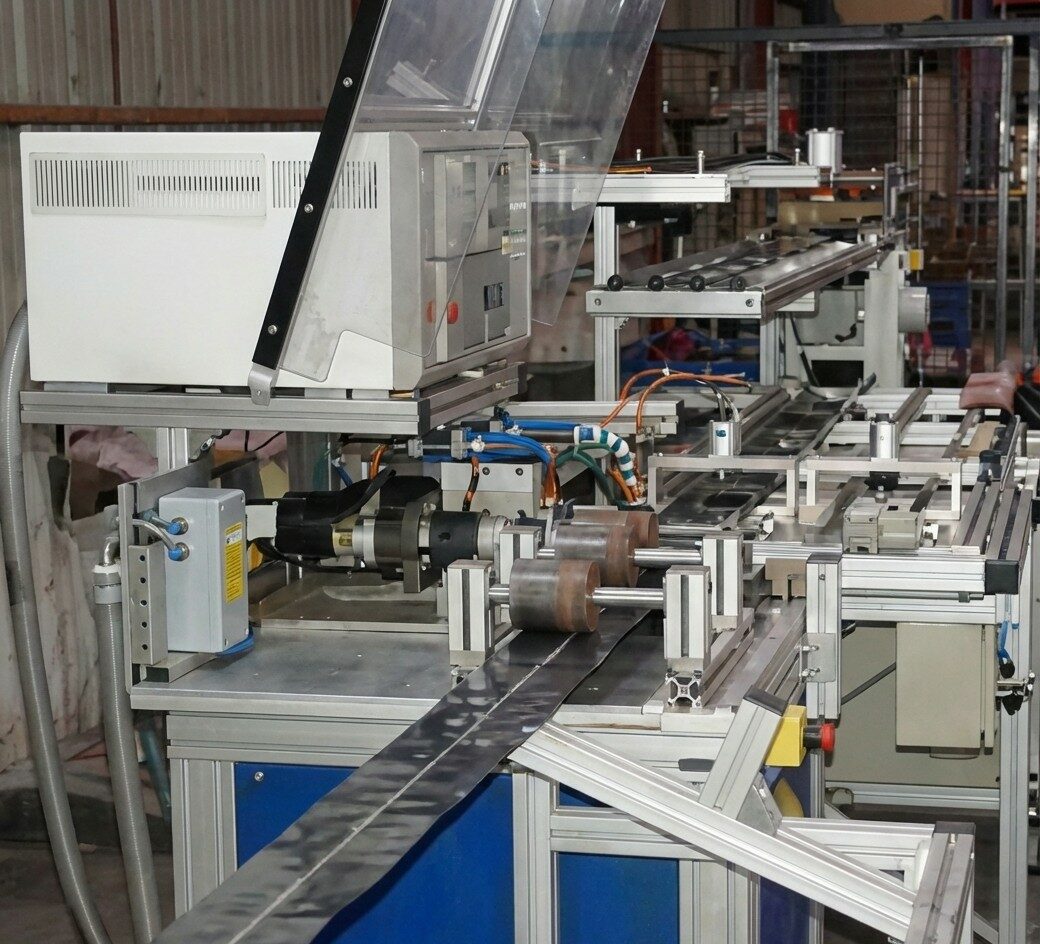

fabrication d'échangeur solaire par grippage US (G2)grippage d'échangeur solaire ensemble
