Automated Winding Machine

Mission Objectives


ASM has been working for many years in collaboration with a world specialist in electrical and digital technology. This special machine was designed to make windings used in circuit breakers. Its particularity lies in its dual operation, as it can be used in automatic mode or in manual mode, for 2 different types of products.

Results


The technical solution proposed by ASM allowed our client to have a single versatile workstation with the following technical characteristics:

  • Four-pole toroid primary winding with traction and conductivity control
  • Two operating modes and two types of products for the user to choose from: automatic or manual and 2 or 4 wires
  • Rate of 3000 to 6000 parts per hour

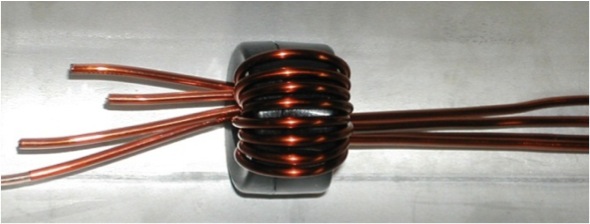

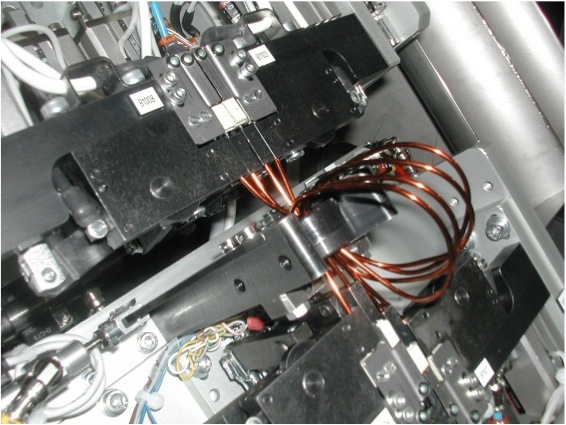

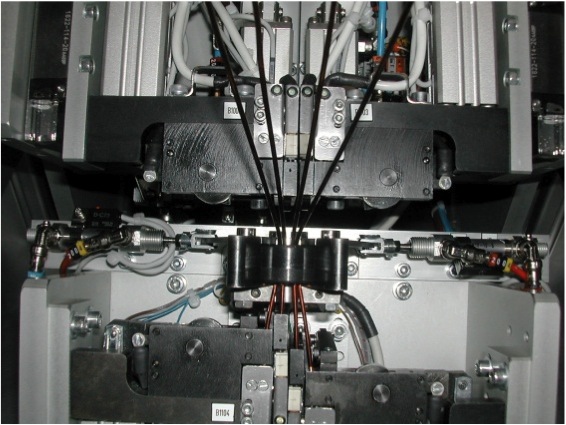

Machine spéciale de bobinage - vue générale mode automatique Machine spéciale de bobinage - vue générale mode manuel Machine industrielle de bobinage - détail bobine
