Carbon Weaving Line

Goals:

Realization of an autonomous weaving station of composite materials up to 100 threads per centimeter.

Results:

Automated winding and weaving over a useful area of 2 meters, up to 20,000 threads. Weaving rate of 10 meters per minute.

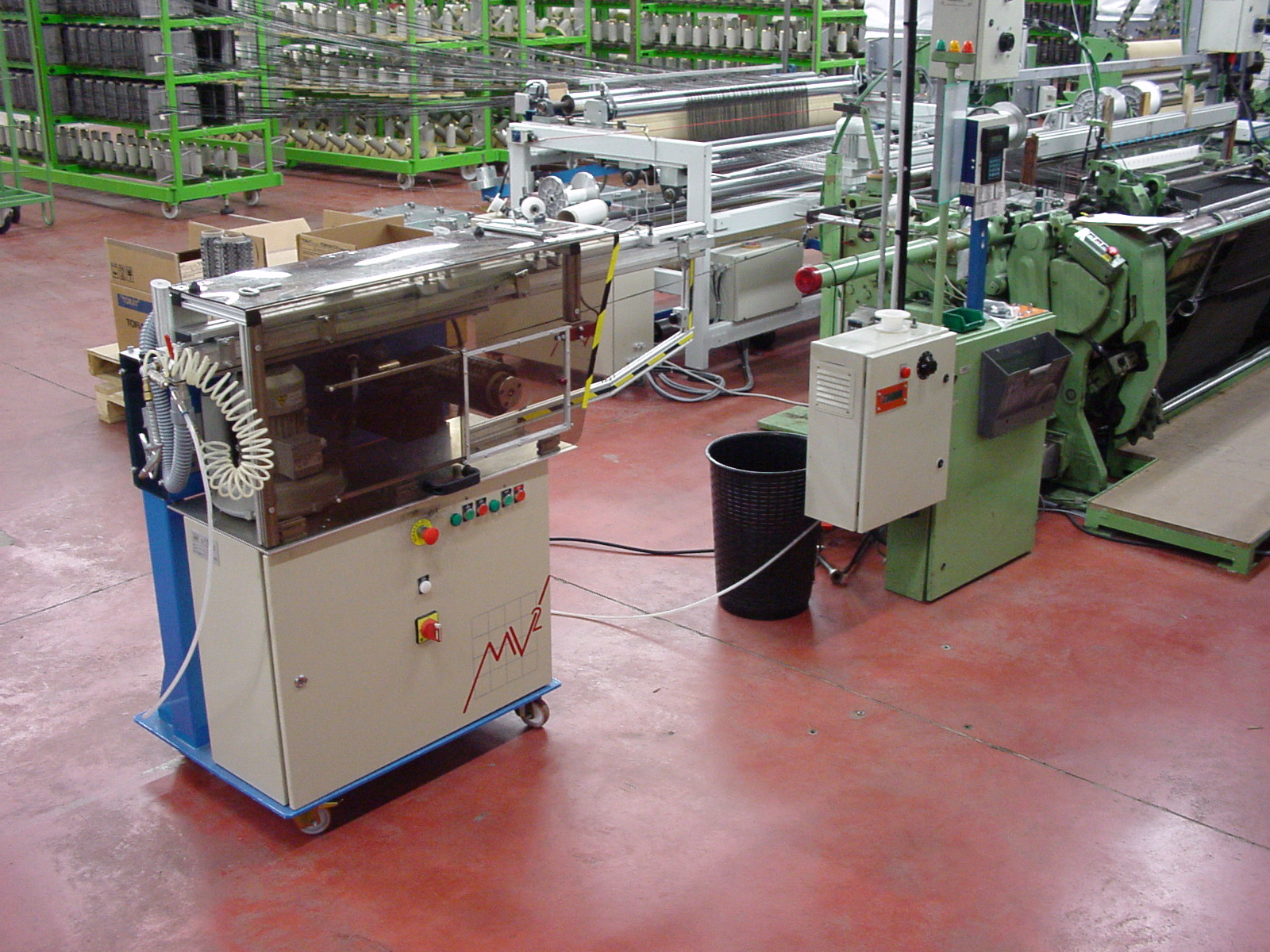

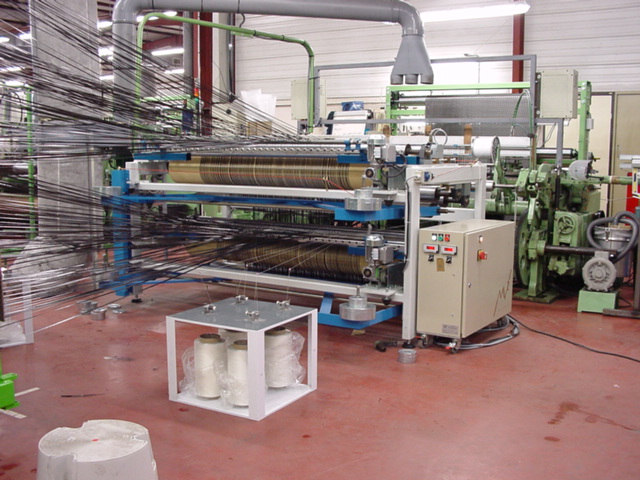

prédélivreur de fil plat carbone ensemblegroupe d'appel fi l plat carbone

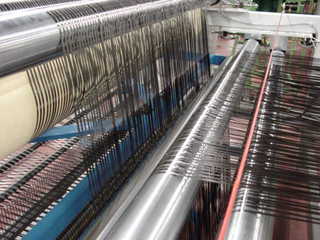

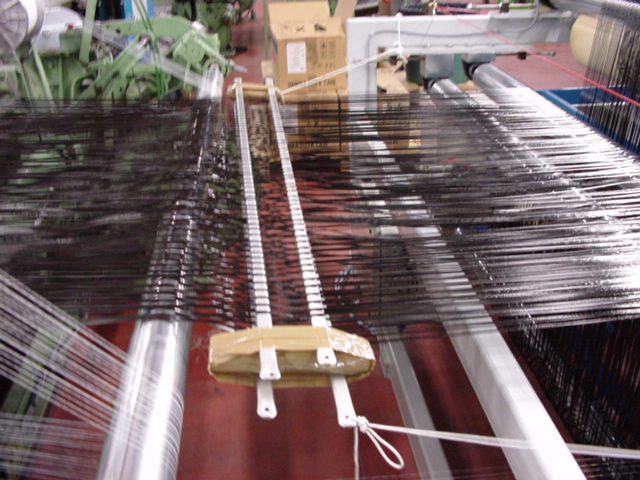

Groupe d'appel pour fil plat carbone 2GROUPE1 1501

Since its creation in 1997, ASM has designed and installed more than 300 production machines, prototypes and pilot installations in France and abroad, of which here are some examples:
