For a client in the Rhône region, ASM designed a custom 9-station assembly line, which assembles control boxes for the automotive industry, from the thermostatic kit to the unit packaging, with leak testing and laser marking.
The need: to assemble a complex, waterproof and traceable product
The casing combines many components (segments, springs, capsules, seals, clip) and must be perfectly sealed.
The solution: 9 stations linked together
- Assembly of thermostatic kits: segments and elements in their capsules, then springs

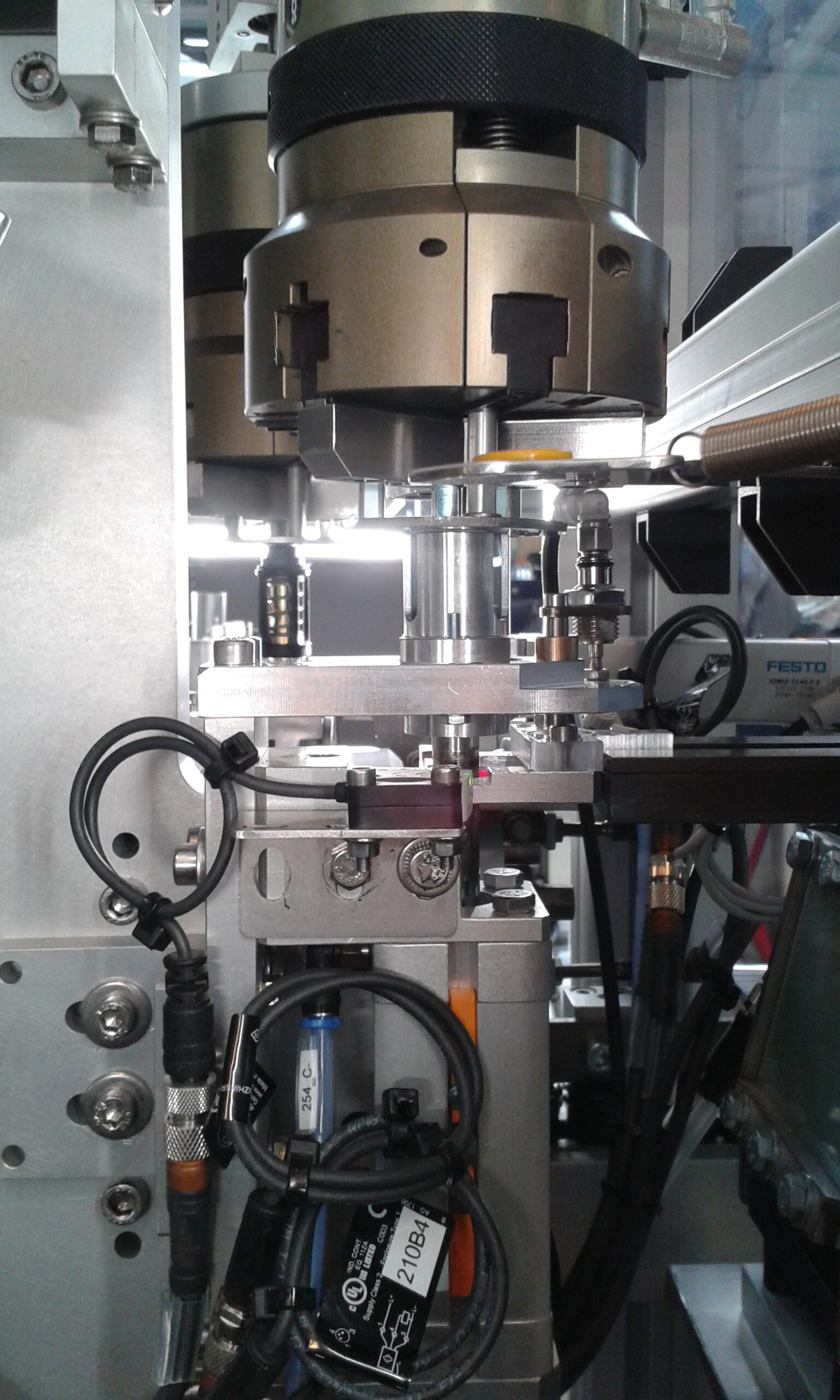

- Welding of capsule caps
- Assembly of the throttle, centering device, and capsule in the housing, including fitting the gaskets and securing with clips.

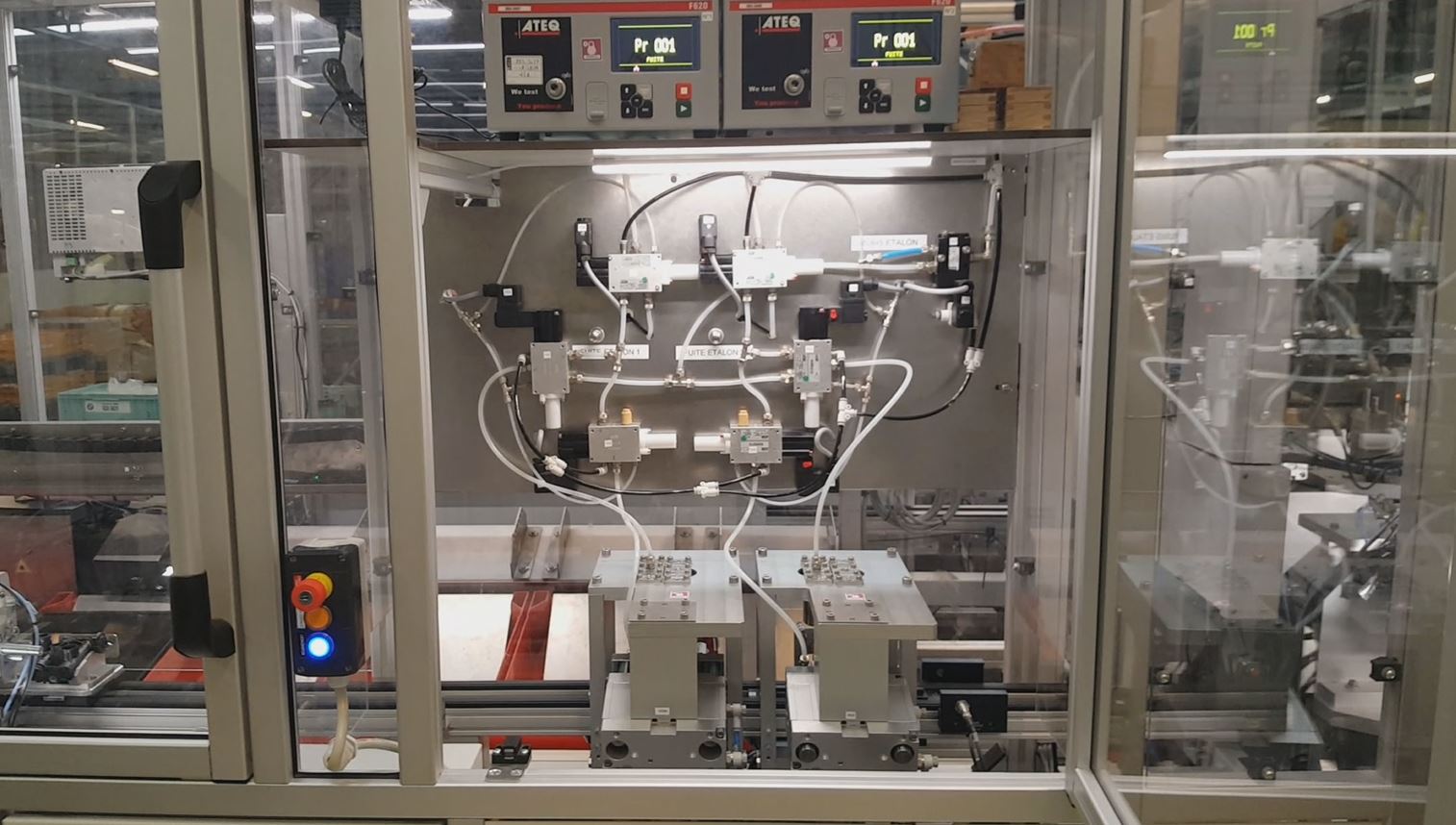

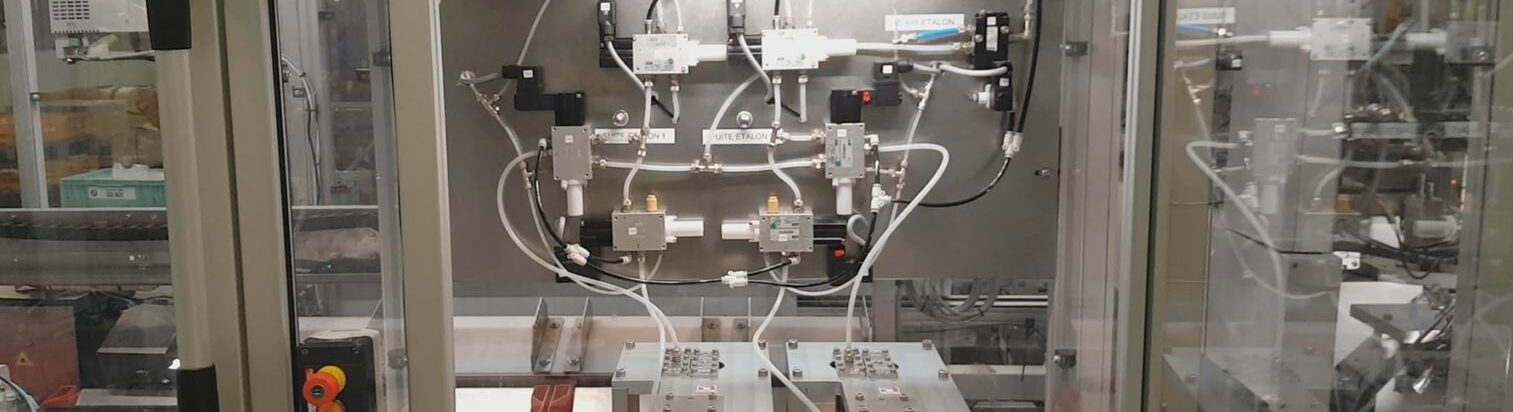

- Internal and external leak testing
- Laser marking for identification
- Unit packaging
Technical specifications
- 9 assembly and inspection stations
- Internal and external leak testing, laser marking
- Confidential Cadence
- Four relieved operators
- 2018
